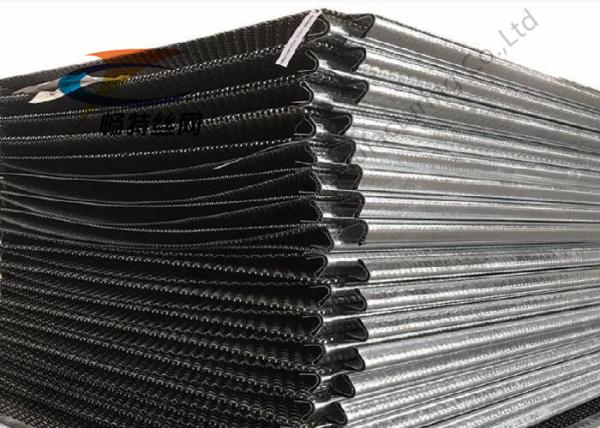

65mn 45# 0.7-20mm Vibrating Screen Wire Mesh

    Buy cheap 65mn 45# 0.7-20mm Vibrating Screen Wire Mesh from wholesalers

    Buy cheap 65mn 45# 0.7-20mm Vibrating Screen Wire Mesh from wholesalers
    • Buy cheap 65mn 45# 0.7-20mm Vibrating Screen Wire Mesh from wholesalers
    • Buy cheap 65mn 45# 0.7-20mm Vibrating Screen Wire Mesh from wholesalers

    65mn 45# 0.7-20mm Vibrating Screen Wire Mesh

    Ask Lasest Price
    Brand Name : Changte
    Model Number : CT-VSM09
    Certification : ISO9001
    Payment Terms : Can be negotiated
    Supply Ability : 2000 ton per year
    Delivery Time : 3-20 work days
    • Product Details
    • Company Profile

    65mn 45# 0.7-20mm Vibrating Screen Wire Mesh

    65mn 45# 0.7 - 20mm Vibrating Screen Mesh



    Vibrating screen mesh can be used as screen deck in the vibrating screen,crusher screen,mining screen,quarrying screen and other machines.It is widely used in vibrating screen machines to filter and separate sands,gravel,coal,stones,rocks,chemical,rocks,iron,and other materials.
    Vibrating screen Mesh
    Material: high steel wire,45#, ,65Mn,high steel wire&Pu Material.
    Advantage:1. High strength 2. High resistance 3. Accept customized variety size.

    Feature:
    Material: High tensile manganese steel.
    Wire diameter: 1.5mm - 12.8mm.
    Opening size: 2mm - 110mm.
    Hole type: Square mesh, rectangular mesh.
    Hook type:Bending.Welding.Metal sheet hook. (C type or U type).
    Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
    Surface treatment: Galvanized before weave and galvanized after weave, painted.

    Application
    The woven quarry screen mesh is widely used in the vibrating screens, crushers and trommel screens.
    Woven quarry screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.

    Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
    Technical Parameters of Carbon Steel Wire

    No.

    Grade

    Chemical Composition

    Wire diameter



    C

    Si

    Mn

    mm

    1

    45

    0.42-0.50

    0.17-0.37

    0.50-0.80

    2.0-6.0

    2

    50

    0.47-0.55

    0.17-0.37

    0.50-0.80

    3

    55

    0.52-0.60

    0.17-0.37

    0.50-0.80

    4

    60

    0.57-0.65

    0.17-0.37

    0.50-0.80

    5

    65

    0.62-0.70

    0.17-0.37

    0.50-0.80

    6

    70

    0.67-0.75

    0.17-0.37

    0.50-0.80

    7

    65Mn

    0.62-0.70

    0.17-0.37

    0.90-1.20

    2.0-14.0


    Technical Parameters of Stainless Steel Wire

    Grade

    Chemical Composition(%)

    C

    Si

    Mn

    Cr

    304

    ≤0.08

    8.0-10.5

    ≤2.0

    18.0-20.0

    321

    ≤0.08

    9.0-12.0

    ≤2.0

    17.0-19.0

    316

    ≤0.08

    10.0-14.0

    ≤2.0

    16.0-18.0

    2205

    ≤0.03

    4.5-6.5

    ≤2.0

    21.0-23.0

    2207

    ≤0.03

    6-8

    ≤1.2

    24.0-26.0


    S /

    WIRE DIA

    OPEN SIZE


    1

    0.5

    0.3

    1200mmx1500mm
    1500mmx2000mm
    1500mmX2470mm
    1600mmX3100mm
    1600mmx2550mm
    1630mmX2550mm
    1750mmx4500mm
    1850mmx2070mm
    2000mmx3000mm
    2030mmX2050mm
    2070mmx2470mm
    ...Can be customized according to customer specified model specifications

    2

    1

    0.75

    3

    1.5

    1

    4

    2

    1.5

    5

    3

    2

    6

    4.0mm

    2.5mm

    7

    5.0mm

    3mm

    8

    6.0mm

    3mm

    9

    7.00mm

    3mm

    10

    8.0mm

    3mm

    11

    9.0mm

    3.5mm

    12

    9.5mm

    3.5mm

    13

    10.mm

    4mm

    14

    11.0mm

    4mm

    15

    12.0mm

    4mm

    16

    12.5mm

    4mm

    17

    13.0mm

    4mm

    18

    14.0mm

    4mm

    19

    15.0mm

    4mm

    20

    16.mm

    4mm

    21

    17.mm

    4.5mm

    22

    18.mm

    5mm

    23

    19.mm

    5mm

    24

    20.0mm

    6mm

    25

    21.0mm

    6mm

    26

    22.0mm

    6mm

    27

    23.0mm

    6mm

    28

    24.0mm

    6mm

    29

    25.0mm

    6mm

    30

    26.0mm

    6mm

    31

    30.0mm

    6.5mm

    32

    32.0mm

    7mm

    33

    35.0mm

    7mm

    34

    38.0mm

    8mm

    35

    40.0mm

    8mm

    36

    45.0mm

    8mm

    37

    50.0mm

    8mm

    38

    55.0mm

    8mm

    39

    60.0mm

    8.5mm

    40

    65.0mm

    8.5mm

    41

    75.0mm

    9 mm

    42

    80.0mm

    9 mm

    43

    90.0mm

    9mm

    44

    100.0mm

    10mm


    FAQ
    Q: Are you trading company or manufacturer?
    A: We are factory.
    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
    Q: Do you provide samples? is it free or extra?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
    Q: What is your terms of payment?
    A: T/T30% in advance and T/T70% after shipping or L/C
