Woven Metal Decorative Lock 0.1mm Stainless Steel Crimped Wire Mesh

Ask Lasest Price
Brand Name :	CHANGTE
Model Number :	S-15
Certification :	ISO9001:2015
Price :	5.2USD/M
Payment Terms :	L/C, T/T
Supply Ability :	10000M
Delivery Time :	3-10 days

Add to Cart

Product Details
Company Profile

Woven Metal Decorative Lock 0.1mm Stainless Steel Crimped Wire Mesh

Stainless Steel Screen Wire Mesh Woven Metal Decorative Lock Crimped Wire Mesh

1. Stainless Steel Screen Wire Mesh Decorative wire mesh is also named Architecture Meshes, Decorative woven mesh, metal fabric, is weaved with high-quality stainless steel wire, aluminum alloy wire, brass wire, copper wire or other alloy materials. It is a new decorative product in the modern industrial and architectural applications. Available in many different patterns, each with its own characteristics and optical effect.

2. Features

Variety of styles and mesh openings

Variety of unique patterns

Remarkably versatile

Low maintenance construction

Material sustainability.

Different Colors

3. Specifications

Our company offers decorative metal mesh in a variety of wire diameters, styles and mesh openings. They are woven into a variety of unique patterns, and have benefits of remarkably versatile, low maintenance construction, energy efficiency and material sustainability.

Materials can be uncoated cold-rolled steel, cold-rolled galvanized steel, stainless steel 304 316 316L , aluminum, copper or brass. Our decorative metal mesh in a variety weave and visual forms.

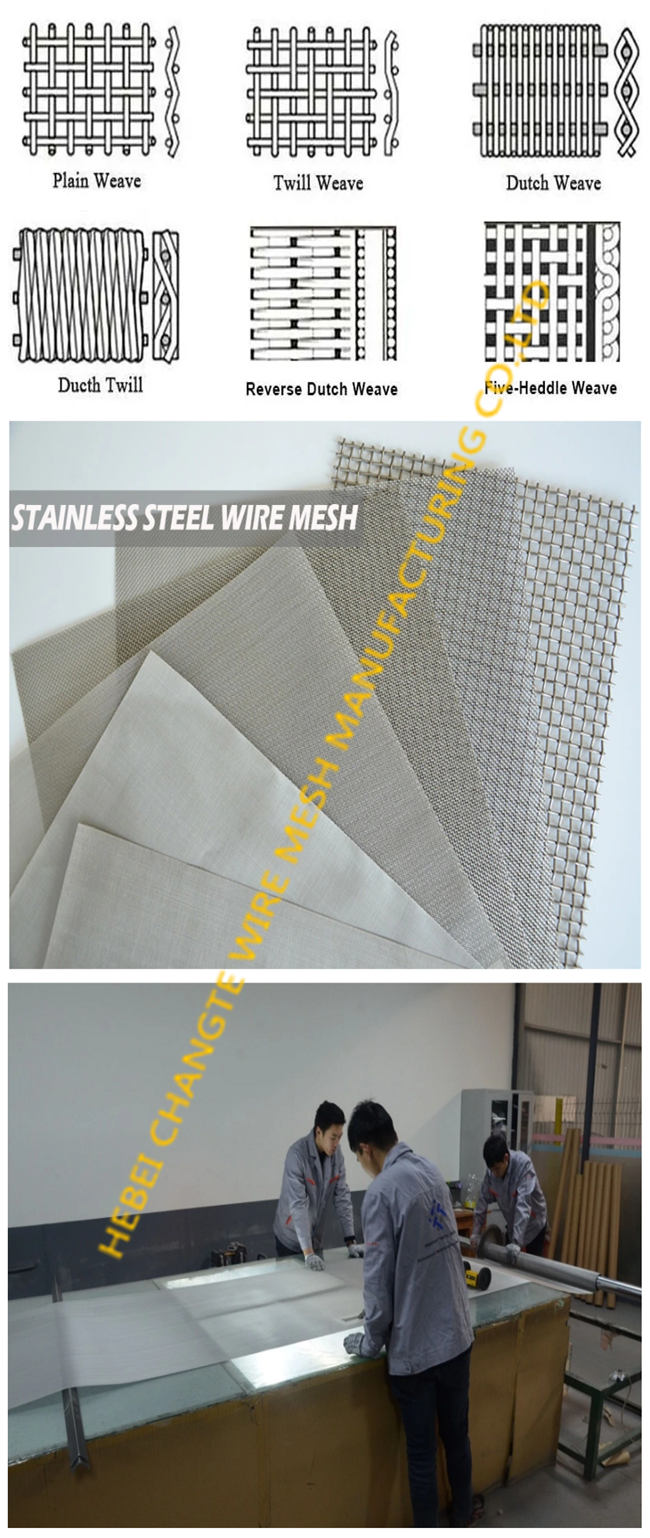

Plain weave mesh Specifications of mesh
Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB)/100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB)/100 Square Foot
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25	2.63
