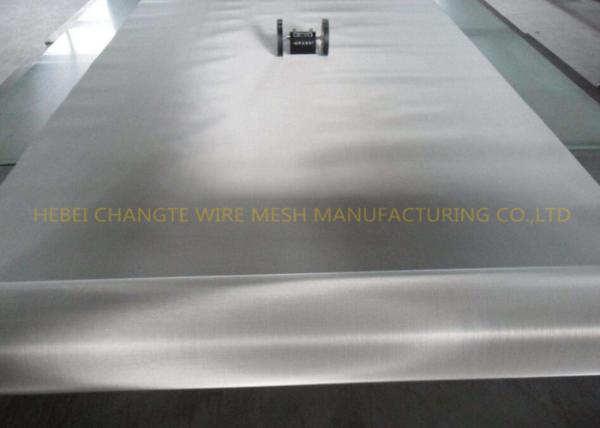

304 316 316l 2-635 5MM Stainless Steel Screen Wire Mesh

Ask Lasest Price
Brand Name :	CHANGTE
Model Number :	S-14
Certification :	ISO9001:2015
Price :	5.2USD/M
Payment Terms :	L/C, T/T
Supply Ability :	10000M
Delivery Time :	3-10 days

Add to Cart

Product Details
Company Profile

304 316 316l 2-635 5MM Stainless Steel Screen Wire Mesh

304 316 316L 2-635 Stainless Steel Screen Wire Mesh

1. Feature of the stainless steel wire mesh

Corrosion resistance.

Anti-acid and alkali resistance

Anti-high temperture.

Good filter performance.

Long using life

2. Application of the stainelss steel wire mesh

In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,.

Chemical fiber industry as screen mesh.

Plating industry as acid cleaning mesh.

3. Uses of wire mesh include:
Sizing
Particle separation and filtering
Particulate sifting
Safety and equipment protection.
Industries served include aerospace, automotive, construction and oil & gas.

4. Custom manufacturing services include:
Wide selection of metals and alloys, including special wire selections such as cable mesh and plastic-coated wire.
Extra wide wire cloth, up to 240" width for selected items
Wire cloth in long rolls, up to 2000' long coils or rolls with no seams
Woven edges
Full range of conversion services, including slitting, shearing, calendaring, stretching and annealing.
Oblong opening and high aspect ratio wire cloth designs are available.

erial	common material:stainelss steel 304 316 904L 2205 2207 430 310 317 309 etc. 304L 316L
	special material:pure nickel wire, Ni-cr wire, monel, inconel wire etc.
wire diameter	0.023-2.8mm
weaving type	plain weave, twill weave and dutch weave, bamboo weave Hollander weave etc.
mesh counts	1-2300meshes
micron size	500 400 300 200 100 80 70 25 micron
technique	woven wire mesh
mesh rolls size	1x30m 2x30m 1.524x30m 0.914x30m etc.
sample	free and avaliable
surface	flat and bright

Plain weave mesh Specifications of mesh
Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB)/100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB)/100 Square Foot
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25	2.63
