Square Decorative Dutch Stainless Steel Crimped Wire Mesh

Ask Lasest Price
Brand Name :	CHANGTE
Model Number :	HBCT-C022
Certification :	ISO9001:2015
Price :	10.0usd/m
Payment Terms :	Consultation and communication decision
Supply Ability :	200tons
Delivery Time :	5 - 8 days

Add to Cart

Product Details
Company Profile

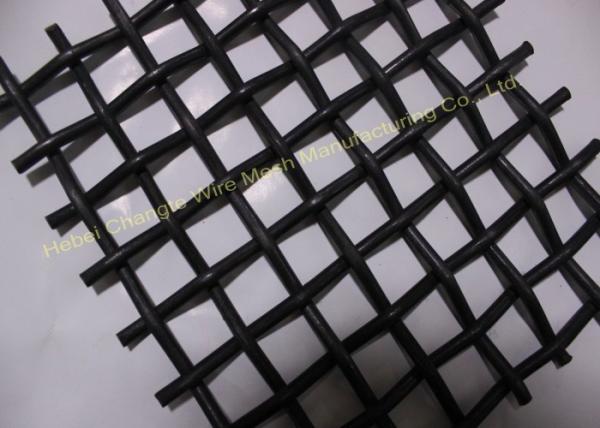

Square Decorative Dutch Stainless Steel Crimped Wire Mesh

Crimped Square Decorative Dutch Crimped Wire Mesh

1.Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
2.Surface treatment: galvanized or painted.
3.Wire diameter: 0.71mm - 12.5mm.
4.Mesh size: 1mm - 100mm.
5.Hole type: square, rectangular and long slot.
6.Weaving type:
Plain weave.
Pre-crimped.
Flat top.
Intermediate crimped.
Lock crimped.
IMPORTANT FACTS TO CONSIDER WHEN ORDERING SCREENS:
When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on:
The screen selected must achieve a compromise amongst these factors.
When ordering screens the following technical aspects should be taken into account :
Thickness of wire
Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.
Open Area
This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster the speed of screening. This open area factor must balanced against the wire diameter to give adequate life
Mesh
The mesh refers to the number of openings per inch. The mesh is counted by starting from the centre of one wire and counting the number of opening to a point one inch away.

WIRE DIA	APERTURE	WEIGHT
0.75	1.00	4.29
1.00	1.50	5.33
1.50	2.00	8.57
2.00	3.00	10.67
3.00	4.00	17.15
3.00	5.00	15.00
3.50	6.00	17.20
4.00	8.00	17.44
4.00	10.00	14.95
4.50	12.00	16.05
4.50	12.50	15.58
4.50	14.00	14.32
5.00	16.00	15.57
5.50	18.00	16.84
5.50	19.00	16.15
5.50	20.00	15.52
6.50	22.00	19.39
6.50	24.00	18.12
6.50	25.00	17.55
6.50	28.00	16.02
7.00	32.00	16.44
7.50	35.00	17.31
7.50	38.00	16.17
7.50	40.00	15.49
7.50	45.00	14.02
8.00	50.00	14.43
9.00	63.00	14.72
9.00	75.00	12.61
11.00	100.00	14.26
