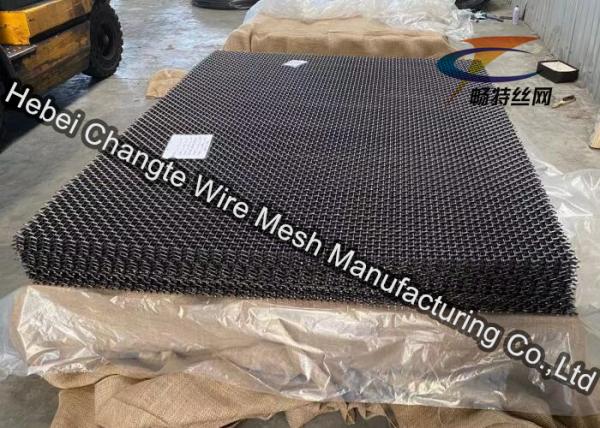

1mm-100mm Aperture Manganese Wire Mining Wire Mesh Screen
Crimped wire mesh also called square wire mesh is cloth made from wire strands.The
wires that make up wire mesh run parallel to the width of the roll
(cross wires) and parallel to the length (line wires).The cross and
line wires are interwoven.That is, the wires cross over and under
each other.Wire Mesh can be woven in a number of different styles
depending on the material type, wire diameter, and opening
size.Crimped wire mesh is available in rolls, sheets or panels, and
cut-to-size.
Screen mesh is widely used in industry, agruculture, crusher,
building, house fencing and so on.
Crimped Wire Mesh Material:
Iron wire, black wire, stainless steel wire, copper wire and other
non-ferrous metal.
Crimped Wire Mesh Weaving:
Pre-crimping before Weaving. In two-way separated wave bending,
locked bending, flat-topped curved, two-way bending, one-way
separated wave bending.
Crimped Wire Mesh Uses:
Used for mining, coal plants, construction, petrochemical industry,
construction machinery,BBQ,etc.
Crimped Wire Mesh Features:
Structure firm and durable.
Crimped Wire Mesh common specifications:
Diameter 1.0mm X mesh opening 8mm or 10mm
Diameter 1.5mm X mesh opening 12.5mm, 15mm or 20mm
Diameter 3mm X mesh opening 15mm, 20mm, 30mm
Length and width specifications: 1mX25m 1mX30m 1.2mX25m 1.2mX30m
Packaging:
Wrapped with moister-proof paper, Then covered with Hessian cloth.
Specification:
| mesh thickness(mm) | distance
short(mm) | distance
long(mm) | strip(mm) | width
(m) | length
(m) | weight
(kg/m 2 ) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
| Other specifications and size can be produced as buyers'
requirements. |
