Building Material Punching Mesh Perforated Sheet Metal Panel For
Decorative
Perforated Metal Introduction
Our decorative perforated metal is a sheet of material, such as
perforated carbon steel, that contains a series of punched
decorative holes. Decorative perforated metal from Direct Metals is
lightweight, durable, versatile, and economical. Not only will
decorative perforated metal add functionality to your space, it
will also make it more aesthetically appealing as well.
Some of the features of decorative perforated sheet metal:
· Economical
· Customizable
· Large open area
· Decorative
· Many patterns, materials, and gauges
Specifications of perforated metal sheet
| Name | Perforated Mesh / Perforated Sheet / Punching Mesh / Decorative
Mesh |
| Material | Aluminum Sheet,Steel Sheet,Galvanized Sheet |
Surface Finish | (1)For aluminum material
Mill finish
Anodized finish(silver only)
Powder coated (any color)
PVDF (any color,smoother surface and longer life span) |
(2)For iron steel material
Galvanized : Electric galvanized,Hot-dip galvanized
Powder coated |
| Sheet size(m) | 1x1m, 1x2m, 1.2x2.4m, 1.22x2.44m,etc |
| Thickness(mm) | 2.0mm~10mm,standard:2.mm,2.5mm,3.0mm. |
| Hole shape | Sound ,square,diamond,hexagonal,star,flower,etc |
| Perforation way | Straight perforation,staggered perforation |
Material | Thickness(MM) | Hole (MM) | Pitch(MM) | Dimension(M) | Pack type |
Stainless Steel 201,202,304, 316,310,2205, etc | 0.2 | 0.5-6.0 | 1.2-6 | 1*20 or 0.5*0.5 | roll or sheet |
| 0.35 | 0.5-6.0 | 1.4 at least | 1*20 or 0.5*0.5 | roll or sheet |
| 0.45 | 0.5-6.0 | 1.1at least | 1*20 or 0.5*0.5 | roll or sheet |
| 0.5 | 0.8-6.0 | 1.5 at least | 1*20 or 0.5*0.5 | roll or sheet |
| 0.8 | 1.0-10 | 2 at least | 1*20 or 0.5*0.5 | roll or sheet |
| 1 | 1.2-10 | 2.7 at least | 1*2M | Sheet |
| 1.2 | 1.2-10 | 2.7 at least | 1*2M | Sheet |
| 1.5 | 1.5 | 3.0 at least | 1*2M | Sheet |
| 2 | >=2.0 | >=4.0 | 1*2M | Sheet |
| 3 | >=3.0 | >=6.0 | 1*2M | Sheet |
| 4 | >=4.0 | >=8.0 | 1*2M | Sheet |
| 5 | >=5.0 | >=10.0 | 1*2M | Sheet |
| 6 | >=6.0 | >=12.0 | 1*2M | Sheet |
The shape of the hole is determined by the shape of the die. If the perforated sheet
metal has a decorative hole pattern, then the die is shaped in
various forms. Decorative perforated metal is available in a wide
array of hole shapes, gauges and materials such as carbon steel,
aluminum, galvanized, and stainless steel.
There are many perforation options available, such as end stagger, side stagger, straight lines, and specified
margins. If you need any assistance choosing which round perforated
metal best fits your needs, consult with your Direct Metals sales
representative.
The applications for decorative perforated metal are endless. Many of our customers
use our decorative perforated metal in cabinets, signage, dividers,
displays, and handrails.
There Have Many Usage For The Perforated Metal :
1.Machinery covers, ornamental covers, speaker grills, storage,
radiator grills, stove grills, protecting covers
2.Air filters, oil filters, mufflers, front grills, interior and
exterior parts
3.Heat insulation panels, noise insulation panels for construction
sites, vehicles and vessels,Stainless Steel or Aluminum material is
ok for this.

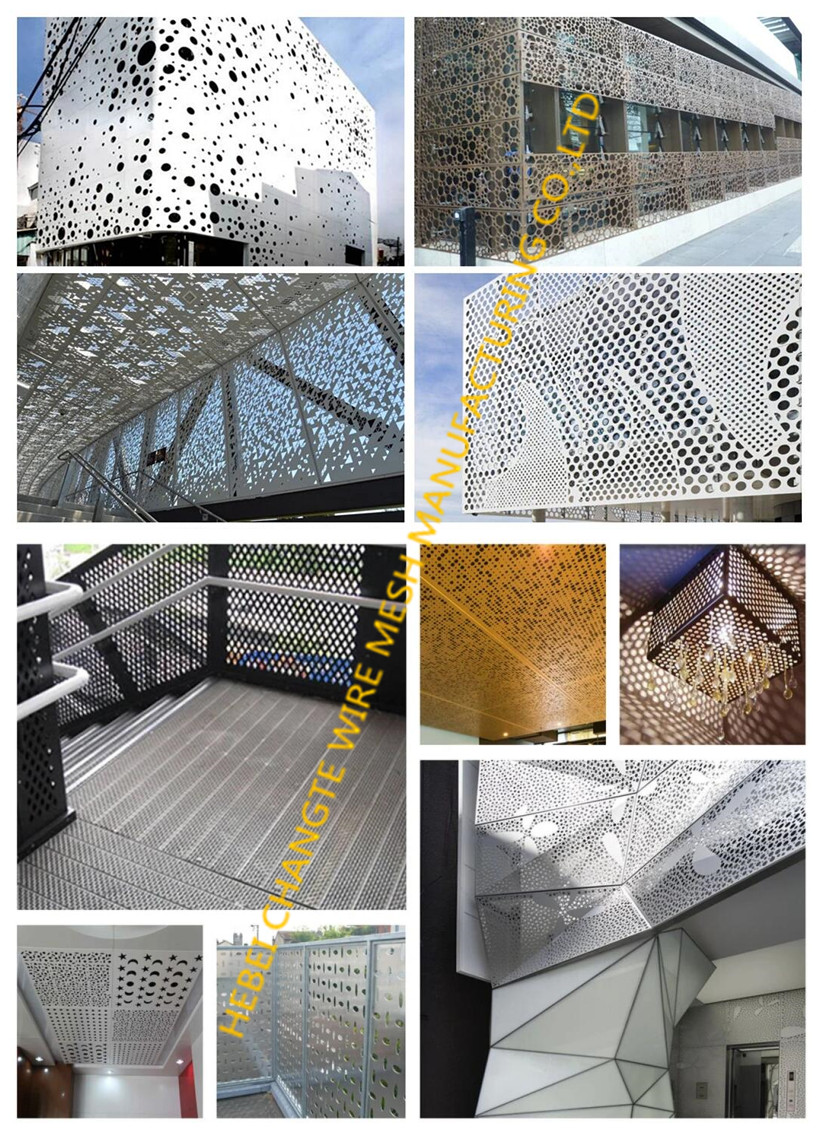

4.Wall paneling, partitioning, ornamentals, lighting equipment,
exterior panels, fixtures, chairs, tables, ceilings
5.For production of sugar, pulp and paper,flour, oil refining,
distillation columns
6.Boilers, ventilators, kitchen furniture, planters, shields for
microwave ovens, dust boxes
7.For screening grains, seeds, coal, sands, gravels and chemical
products
8.For production of granular and tablet pharmaceuticals, cube
sugar, instant coffee, agricultural chemicals, fertilizers,
chemical products
Normal Specification as below for reference, other special size can
be made by order.
