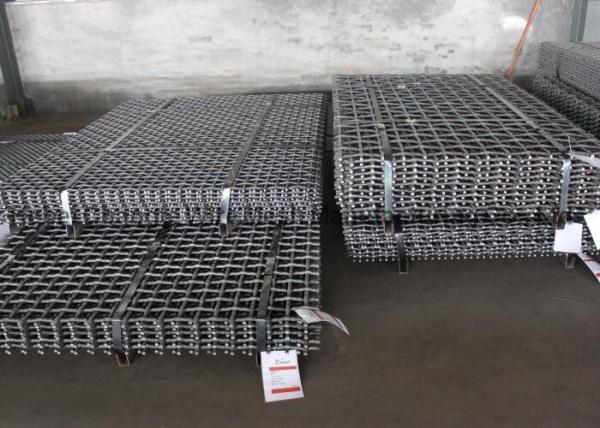

Wire Dia 0.3mm-18mm Crimp Wire Mesh Heavy Duty Wire Mesh For Mine And Coal

Sometimes known as wire gauze or wire cloth – is an extremely versatile material suitable for many sieving, straining and filtering applications. It is woven to fine limits and can be used to separate out particles of a given size.

We are specialist suppliers of woven wire mesh, carry very large stocks, in a variety of different metals and can offer a rapid and efficient service.

Stainless Steel

Withstands temperatures up to 800° C. By far the most popular where strength and durability are of prime importance. All standard meshes are stocked in Type 304 quality, and many are also available in Type 316 which is more resistant to corrosion. Certain other qualities obtainable to special order.

Range: 2 mesh-500 mesh and Hollanders.

Plain Steel

A low price material for use where corrosion resistance is not important. Mostly supplied plain but certain meshes also available galvanised.

Range: 2 mesh-80 mesh.

Monel

An alloy of nickel and copper, it combines strength with excellence resistance to substances such as acids, alkali's and sea water.

Range: 20 mesh-250 mesh and Hollanders.

Phosphor Bronze

An alloy of copper and tin which is strong and durable and will resist diluted acids and alkali's. Easily soldered.

Range: 30 mesh-200 mesh.

Brass and Copper

Brass, an alloy of copper and zinc, is harder but more subject to corrosion. Copper is less corrodible but because of its softness, should not be used with abrasive substances. Both are easily soldered.

Range: 4 mesh-100 mesh.

Glossary

Mesh Count: the number of apertures or wires in a linear inch. Most meshes are square woven and will have the same count in both warp and weft.

Warp: the wires running lengthwise in a roll of mesh.

Weft (or Shute): the wires running transversely across the mesh width.

Open (or Free) Area: the proportion of aperture expressed as a percentage of the whole area.

Selvedge: the finished edge formed by looped weft wires at either side of the cloth. Some modern shuttleless looms do not produce a looped selvedge.

Useful formulae

Aperture (in mm) = 1/M –d

Where ‘M’ = mesh count per mm and ‘d’ = wire diameter in mm.

Open area % = [a²/(a+d) ²] x 100

Where ‘a’ = aperture in mm and ‘d’ = wire diameter in mm.

Specifications

Hebei Changte Wire Mesh Manufacturing Co.,Ltd. is located in Anping,the famous Wire Mesh Land of China. Established in 2000,today Changte has developed to be a major company who equipped with more than 200 sets wire mesh production machines,and engaged in various of wire mesh products'sale and production.

Our factory has advanced equipments,skilled workers,complete quality management system, strong R&D capability. With choice materials, we are mainly manufacture Crimped wire mesh,Woven wire mesh,Filter screen mesh,Self cleaning screen mesh,Square wire mesh,Gabion wire mesh,Wire mesh fence,Razor barbed wire etc.

As our company is growing day by day, the list of clients is also increasing and today; we have marked a niche in not only domestic but also in international market. With our internationally certified products, we have revolutionized the global market place.

Our clients are spread across the corners of world, recommending our products for their durability, designing accuracy, dimensional tolerance and adaptability to work under adverse conditions.

For export, utmost attention is paid towards packaging of the products in order to protect them from damage, scratches and dents during the transit.

We adopt to the win-win cooperation model and Set up customer-oriented concept. If there is anything we can do for you,please send your inquiry.we will try our best to help you.Welcome to visit our factory.
