    Mining 65Mn 72A 82B High Carbon Steel Wire Screen

    Ask Lasest Price
    Brand Name : CHANGTE
    Model Number : CT-C04
    Certification : ISO9001:2015
    Price : 3.5USD/M
    Payment Terms : Determined in consultation
    Supply Ability : 500tons
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

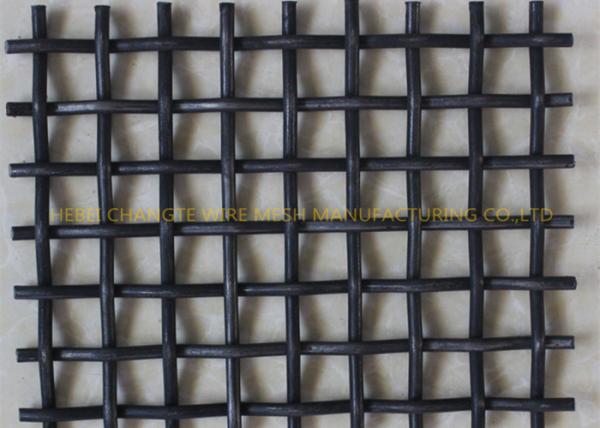

    Mining 65Mn 72A 82B High Carbon Steel Wire Screen

    65Mn 72A 82B High Carbon Steel Vibrating Screen Mesh Crimped Woven Wire Mesh


    Product Introduction


    Material: Stainless steel wire, high carbon steel, carbon steel, nickel steel and nonferrous wire.

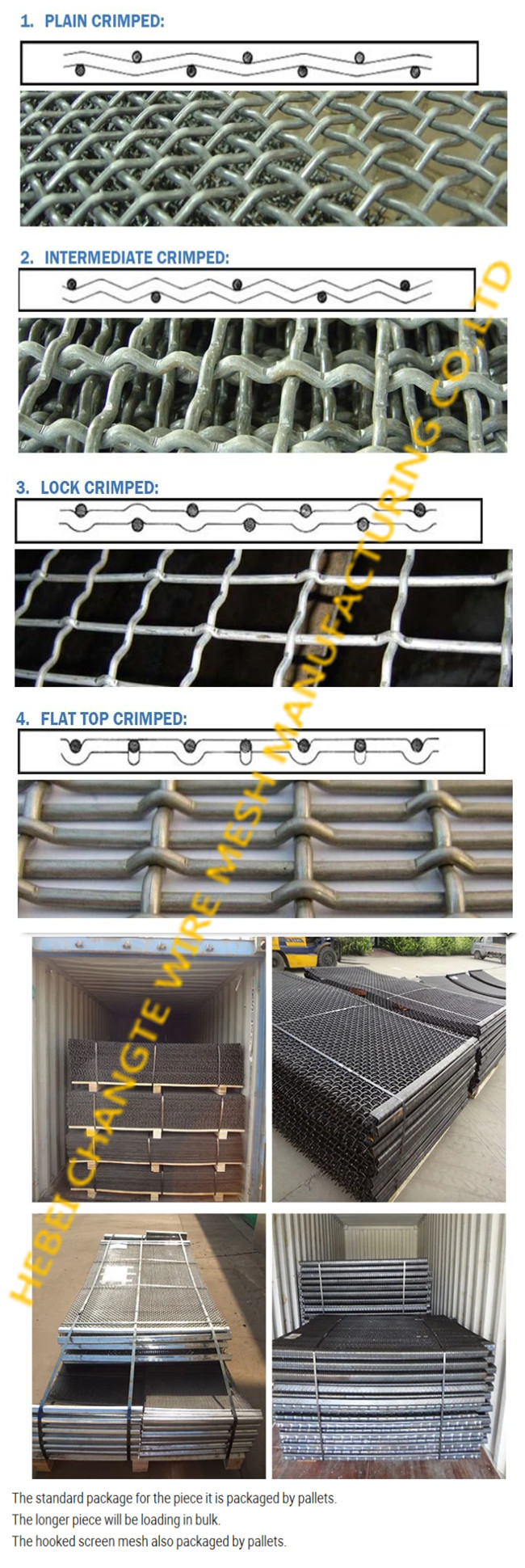

    Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.


    Specifications


    Wire Gauge (SWG)Wire Diameter (mm)Mesh/ InchAperture (mm)Weight (kg)
    64.8120.611.5
    84.052916.5
    103.221010.5
    122.635.910.5
    142.036.56
    161.6455.5
    171.455.15.0
    181.2543.6
    191.063.23.0
    210.872.82.3
    220.782.52
    WIRE DIAAPERTUREWEIGHT
    0.751.004.29
    1.001.505.33
    1.502.008.57
    2.003.0010.67
    3.004.0017.15
    3.005.0015.00
    3.506.0017.20
    4.008.0017.44
    4.0010.0014.95
    4.5012.0016.05
    4.5012.5015.58
    4.5014.0014.32
    5.0016.0015.57
    5.5018.0016.84
    5.5019.0016.15
    5.5020.0015.52
    6.5022.0019.39
    6.5024.0018.12
    6.5025.0017.55
    6.5028.0016.02
    7.0032.0016.44
    7.5035.0017.31
    7.5038.0016.17
    7.5040.0015.49
    7.5045.0014.02
    8.0050.0014.43
    9.0063.0014.72
    9.0075.0012.61
    11.00100.0014.26


    Application:


    Screening in mine, petroleum, chemical, building and food industry.


    Used in


    machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.


    As a rule, in terms of quarries or mining industry, woven wire space cloth screens are provided with side edge hooks or edge treatments for tensioning purposes.


    Unless otherwise specified, hooked side edges for heavy and medium duty space cloths are about 30mm long (from the inside of the bend to the end of the hook) and at a 45-60º degree angle from the face of the space cloth.
