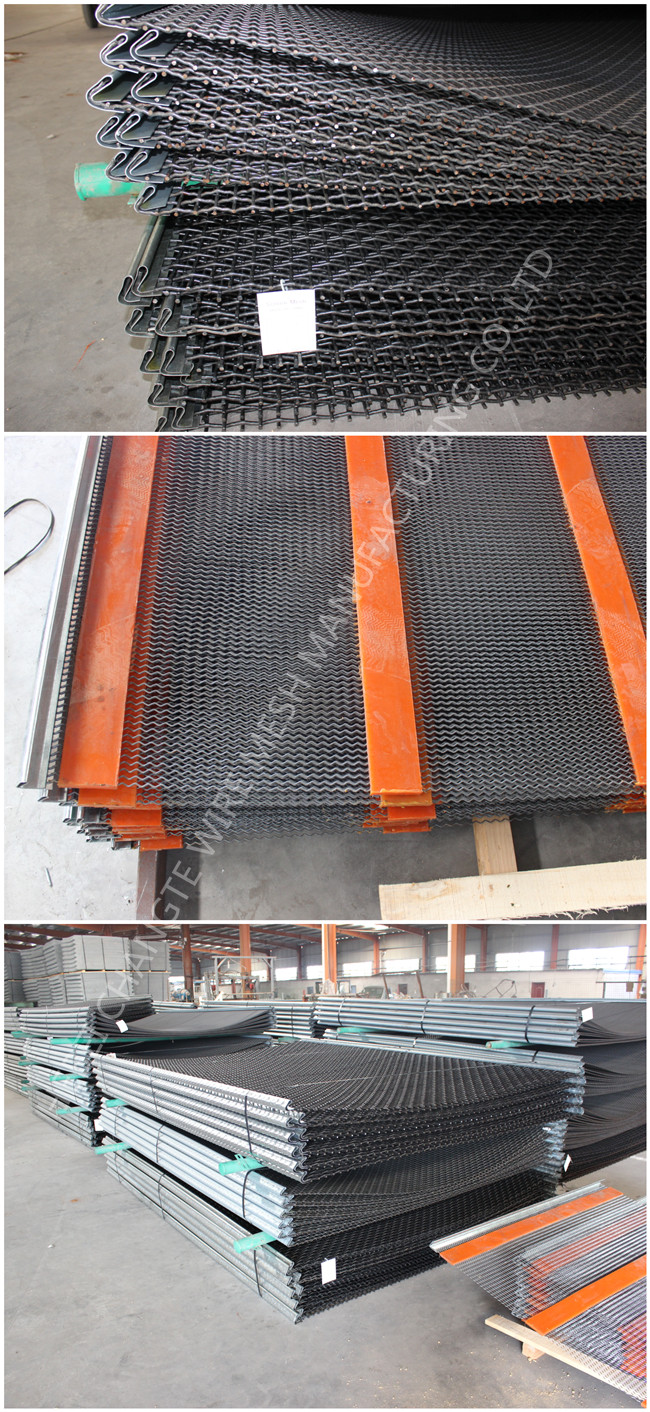

Screening Equipment Mining Wire Screen Mesh Curved Hook Sieve Mesh Crusher

1.Mining Wire Screen Mesh is made by corbon iron wire, galvanized steel wire or stainless steel wire.

Weaving Patterns: Weaving after crimping

General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel

2.Mining Wire Screen Mesh are for roasting of flour food and meat.

3.Mining Wire Screen Mesh Materials: Low carbon steel wire, stainless steel wire or brass wire. high carbon steel wire , Manganese steel wire

4.Mining Wire Screen Mesh can be also known as the iron crimped mesh, stainless steel crimped mesh, black iron crimped mesh according to different materials.

5.Mining Wire Screen Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.

6.Mining Wire Screen Mesh Material: Iron wire, black MS seel wire, high carbon steel wire, stainless steel wire, copper wire and other non-ferrous metal. like 65 Manganese steel wire

7.Mining Wire Screen Mesh Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.

8.Mining Wire Screen Mesh surface treatment: MS, black painting, galvanized, powder coating,

9.Mining Wire Screen Mesh Features: Structure firm and durable.

10.Mining Wire Screen Mesh Uses: Used for mining, coal plants, construction, petrochemical industry, construction machinery, etc.

11.Mining Wire Screen Mesh common specifications:

Diameter 2.0mm × Mesh opening 3mm 4mm 5mm
Diameter 3.0mm × Mesh opening 4mm 5mm 6mm 7mm 8mm
Diameter 4.0mm × Mesh opening 8mm 9mm 10mm 12mm 14mm
Length and width specifications:1.5m×2m 2m×2.5m 1m × 25m 1m × 30m 1.2m × 25m 1.2m × 30m

Plain weave crimped wire mesh made by carbon iron wire or high carbon steel wire

Wire diameter: 4.0 - 4.2 metric mm (SWG 8, or BWG 8)
Wire standards: DIN 177 (low carbon)
Mesh width 1350-1400 metric mm
Perpendicularity deviation maximum 5.5 degrees 8
Manufactured in 40-50 Kg rolls, tied at the middle and the two sides of roll.

high carbon steel wire mesh screen for vibrating wire mesh mining wire mesh

wire thickness : 2.0mm 3.0mm 4.0mm 5.0mm 6.0mm 7.0,mm 8.0mm 9.0mm 12.0mm etc
mesh opening: 3mm×3mm, 5mm×5mm 6mm×6mm 15mm×15mm 18mm×18mm, 20mm×20mm 38mm×38mm 45mm×45mmetc.
with metal frame, with hook, or without hook

Packing: Wooden pallet or customer specified packing

Shape of hole: square, rectangle, diamond and so on

12.Our advantages:

Professional production machines and first-class skilled workers

Sales and service personnel one - to - one quotation, to ensure timely accurate prices to you

Skilled workshop production scheduling, to ensure the timely delivery of products, to avoid delay your use

Mature after-sales service, if you have any problem, you can contact us at any time, we will do everything possible to help you solve!

Hebei Changte Wire Mesh Manufacturing Co.,Ltd. is located in Anping,the famous Wire Mesh Land of China. Established in 2000,today Changte has developed to be a major company who equipped with more than 200 sets wire mesh production machines,and engaged in various of wire mesh products'sale and production.

Our factory has advanced equipments,skilled workers,complete quality management system, strong R&D capability. With choice materials, we are mainly manufacture Crimped wire mesh,Woven wire mesh,Filter screen mesh,Self cleaning screen mesh,Square wire mesh,Gabion wire mesh,Wire mesh fence,Razor barbed wire etc.

As our company is growing day by day, the list of clients is also increasing and today; we have marked a niche in not only domestic but also in international market. With our internationally certified products, we have revolutionized the global market place.

Our clients are spread across the corners of world, recommending our products for their durability, designing accuracy, dimensional tolerance and adaptability to work under adverse conditions.

For export, utmost attention is paid towards packaging of the products in order to protect them from damage, scratches and dents during the transit.

We adopt to the win-win cooperation model and Set up customer-oriented concept. If there is anything we can do for you,please send your inquiry.we will try our best to help you.Welcome to visit our factory.
