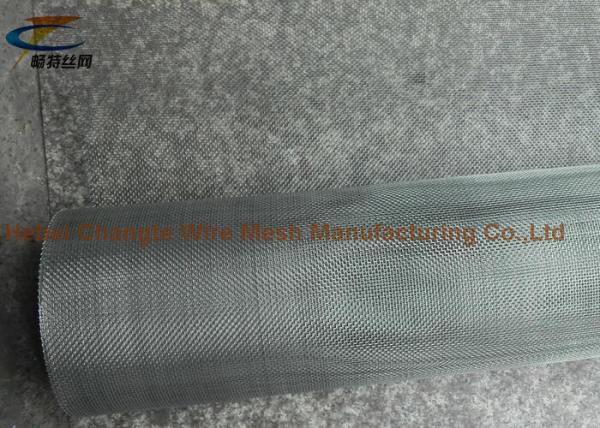

5 mesh plain stainless steel wire mesh aperture 4.0-4.5mm
Stainless Steel Wire Mesh Screens is made of the SS wire to
woven,also called Stainless steel woven mesh Screen,To made the
square hole with plain weave,named Stainless steel square mesh. For
the Twilled woven,can called Stainless steel twilled mesh cloth.
The Stainless steel wire mesh and screen mesh is reeds with imports
of wire mesh for weave.To make sure the hole or mesh have uniform
size,smooth and beautiful mesh screen for suitable to filter
industrial.
Description:
5 mesh plain weave stainless steel wire mesh including 5 wires and
openings of 1 inch Using 0.5-1.0mm diameter wire, by plain weaving,
woven 5 mesh opening for 4.0-4.5mm solid particles , it can also be
used as a liquid, gas coarse filter support material or protective
fabrics to use. This wire diameter and mesh with ratio reasonable,
therefore weave structure is very strong. After 13 whole weaving
process, so that the mesh surface flatness better.
Material:
200 series 201 202 205
300 series 301 302 304 304L 309 309S 310 310S 316 316L 321
400 series 410 420 430
Technical parameter:
Roll width 1.0-8.0m
Roll length 15.24m, 30m, 30.5m, 61m
Standard:
GB/T 5330.1-2000, GB/T 19628.2-2005
Application:
Test Sieve
Radiator grille
Tractor grille
Machine Screen
Vibration Sieve
Food Selection
Wash Rice Basket
For beehives, and for preventing mice from entering air-bricks.
5 mesh plain weave stainless steel wire mesh packing:
Stainless steel wire mesh is packed in rolls,winding on a paper
tube,wrapped in moisture-proof paper
or plastic film, outside wooden cases or wooden pallet.
Chemical composition of stainless steel wire
AISI
Grade | Chemical Composition(%) |
| C | Si | Mn | P | S | Ni | Cr | Mo |
| 304 | >=0.08 | >=1.00 | >=2.00 | >=0.045 | >=0.030 | >8.00~10.50 | >18.00~20.00 | - |
| 304H | >0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | >=0.030 | >=1.00 | >=2.00 | >=0.045 | >=0.030 | >9.00~13.50 | >18.00~20.00 | - |
| 316 | =0.045 | =1.00 | =2.00 | =0.045 | =0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | >=0.030 | >=1.00 | >=2.00 | >=0.045 | >=0.030 | >12.00~15.00 | >16.00~18.00 | >2.00~3.00 |
| 430 | =0.12 | =0.75 | =1.00 | =0.040 | =0.030 | =0.60 | 16.00~18.00 | - |
| 430A | >=0.06 | >=0.50 | >=0.50 | >=0.030 | >=0.50 | =0.25 | >14.00~17.00 | - |
