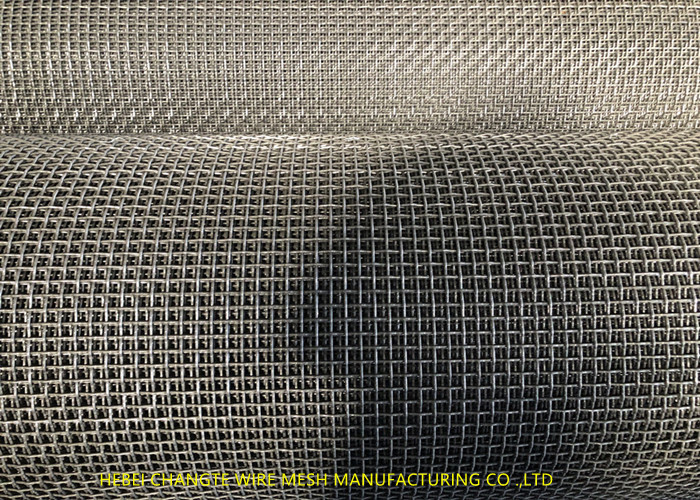

28*28 mm New Type High Carbon Steel Lock Crimp Screen Wire Mesh
with Pre-Crimped Technique
Crimped Wire Mesh product:
1. Materials: Galvanized Wire, Stainless Steel (NO MAGNETIC NO
NICKEL), SS302 (NO MAGNETIC 5% NICKEL), SS304, SS304L, SS316,
SS316L, SS321, Low Carbon Steel, Stitch Wire, etc.
2. Features: Weaving with pre-crimped wire, offering strong
structure, substantially woven, durable, uniform cell,
heat-resisting, corrosion-resisting, abrasion-resisting.
3. Weaving type: Plain crimped / double crimped, Intermediate
crimped, Lock crimped wire, Flat top crimped.
4. Applications: Crimped Wire Mesh products are used as fence or
filters in a lot of industries, screening in mine, petroleum,
chemical and building, used in machinery parts packing, barbecue,
hardware, wire basket, food machinery and so on.
5. Packing: These types of meshes are available in rolls and panels
form or depending upon the customer's requirement.
The Lock Crimp Screens are pre-undulated in order to obtain a great rigidity.
Due to its high per centage of screening surface, they are used to
classify, with great precision and a high performance, materials
that do not have a tendency to block.
The Lock Crimp Mesh is produced via the pre-crimp technique. The warp and Shute wires
are both crimped at their points of intersection and ensures that
there is no wire movement in the mesh. This makes the lock crimp
wire cloth a very hearty stainless steel screen mesh.
Lock Crimped Mesh is characterized by straight sections of wire connected by a well
defined bump at the wire intersections, such a manner to actually
lock the wires together, offering further assurance of no wire
movement. Our lock crimp wire mesh is good in quality and
competitive at price.
feature
1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top
crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.
7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud,
bolt shroud.
| Carbon Steel Grades |
| No. | Steel Grade | Chemical Composition (%) |
| C | Si | Mn |
| 1 | #45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | #50 | 0.47-0.55 |
| 3 | #55 | 0.52-0.60 |
| 4 | #60 | 0.57-0.65 |
| 5 | #65 | 0.62-0.70 |
| 6 | #70 | 0.67-0.75 |
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
Note:
Steel grades #45, #50 and #55 are medium-carbon steel. Steel grades
#60, #65, #70, 65Mn and 72A are high carbon steel.
|
FQA
Q1: Can I print our logo on your products?
A1: Yes, OEM is supported.
Q2: Can you provide samples? If yes, how about the deliverytime?
A2: Yes. Generally speaking,we charge triple for samples, and
return the cost in bulk order.Depend on different items, it will
takes 7-10days.
Q3: What is the MOQ?
A3: 100 pieces
Q4: What payment ways do you support?
A4: Alibaba online pay,T/T,Western union and L/C.
Q5: Delivery time of bulk order?
A5: 20 days.
Q6: How can I trust your quality?
A6: We have ISO 9001 and CE certificates and professional QC term
